Metal Siding & Roof Panels

CARRON AND COMPANY offers a wide range of steel and aluminum exposed and hidden fastener panels. Choose from a variety of profiles and finishes.

2_67RibProfileblueblick-Layout1_w_ltrs_w
Corrugated Panel

•Bare Galvalume Steel
(22, 24, & 26 ga.)
• Bare Galvanized Steel
(18,20,22 & 24 ga.)
•Kynar Finished Steel(18, 20, 22, 24, 26 ga)
•Bare and Kynar Finished Aluminum
(.032 & .040 )


Available Straight or Curved

7.2 Rib Panel

•Bare Galvalume Steel
(22, 24, & 26 ga.)
• Bare Galvanized Steel
(18,20,22 & 24 ga.)
•Kynar Finished Steel (18, 20, 22, 24, 26 ga.)
•Bare and Kynar Finished Aluminum
(.032 & .040 )


Available Straight or Curved

Type R Panel

•Bare Galvalume Steel
(22, 24, & 26 ga.)
• Kynar Finished Steel (22, 24, 26 ga.)
•Siliconized Polyester Finished Steel(26 ga.)


Available Straight Only

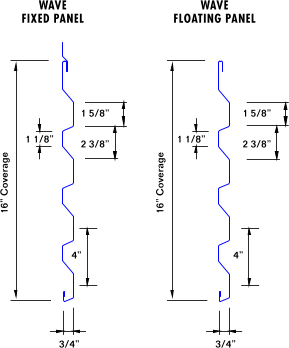

Wave Panel

• Concealed fastener rain screen wall panels

• Kynar Finished Steel (24 ga. Standard)
• Kynar Finished Steel (22 ga. Optional)

• Available in both fixed and floating systems


Available Straight Only

Wave Panel Flyer

MesaLine Panel

  • Concealed fastener insulated metal panels  as manufactured by Green Span

  • Kynar Finished Steel (26, 24, 22 ga.) Ext.

  • Polyester White Finished Steel ( 26 ga) Int.

  • 2, 2.5, 3, 4, 5, 6 in thickness

  • R-8 per inch of thickness

IMP
